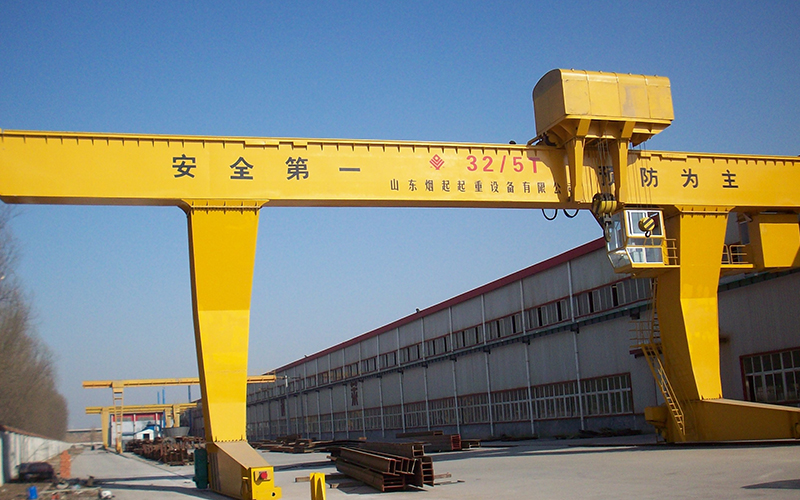

MDG型通用門式起重機

MDG型通用門式起重機依據GB/T14406-2011標準所設計、制造；本產品適用于機械加工、冶金、礦山、造船、車站、港口碼頭等各行業，露天加工區、倉庫、貨場裝卸和搬運物料．本產品與MG型通用門式起重機相比，具有自重輕，作業空間大．造價低的明顯優點。
本系列產品起重量為5t、10t、16/3.2t、20/5t、32/5t，跨度為18～35m，工作級別般為A3～A5級。

主要特點
1.本機主要由L型橋架結構、大車運行機構、起重小車及電氣設備所組成。
2.橋架結構中，主梁、兩支腿、兩下橫梁均采用箱形焊接板結構；單腿結構的L型支腿增大了作業空間。
3.大車運行機構采用立式套裝減速器的分別驅動形式，根據輪壓可采用臺車輪組；小車運行20t及下采用垂直反軌輪，32t采用采用水平反軌輪。
4.小車導電采用異型槽或工宇鋼扁電纜滑車導電；整機供電一般采用銅滑線或電纜卷筒供電。
5.各機構可采用電阻器調速或變頻調速。
6.各主要電器設備均安裝在單獨的電器室內；操縱方式一般為司機室聯動臺操縱：司機室內可安裝冷暖風機或空調、對講機等。

    MDG single-girder gantry crane based on GB/T14406-2011 standard，is applicable to conveying materials in open-air warehouses，storageya rds mines ports and so on. Compared with MG crane，it has obvious advantages of light weight ,large operating space and low cost.

Performance data:
    Range of Iifting load    5t ,10t，16/3.2t, 20/5t, 32/5t
    Range of span    18～35m
    Allowed crane classification group  A3～A5

Main features：
    1. The machine is mainly composed of L-shaped bridge  travelling mechanism, trolley and electrical system.
    2. Main frames are box-welded. L-shaped leg increases the operating space.
    3. Travelling mechanism adopts vertical reducer which is driven respectively.  Whether bogie is applied or not is  decided by wheel pressu re.  In general  the capacity of lifting  load is not more than 20t, vertica reverse-guided whee is applied to keep the balance of trolley，while reaching 32t, level reverse-guided wheel is needed.
    4. Cable pulley with Slot-shaped or I-beam track is for electrical conduct of crane trolley and circular-coppe red slip-line or cable drum is for the whole crane’s.
    5. Resistor or variable frequency for speed adjustment is applied in each mechanism.
    6. In general the manipulation is closed cab’s control，if necessary, air condtioner(or air-cooler)and walkie—talkie can be equipped. All major electrical equipments are  installed in separate room.
