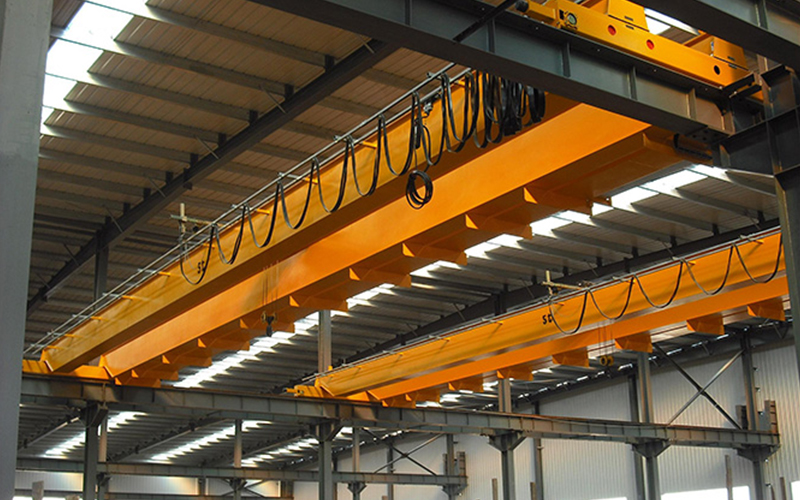

LH型電動葫蘆橋式起重機

LH型電動葫蘆橋式起重機依據JB/T3695-2008標準所設計、制造；本產品在國外歐式起重機上被普遍采用，適用于一般加工裝配車間、倉庫等工作場所，但不能用于易燃、易爆、有強腐蝕性介質環境中和吊運熔融金屬。本產品與LDA型電動單粱起重機相比，具有運行平穩，更安全可靠的明顯優點，本產品與QD型通用橋式起重機相比，具有自重輕、輪壓、外形尺寸小，結構緊湊，各機構運行靈活、操作簡便，更適用于地面操縱，造價低的突出明顯優點。本系列產品起重量一般為3t、5t、10t、16/3t、20/5t、32/5t、40/10t，50/10t，跨度為7.5～31.5m，起重機的工作級別一般為A3～A5級，工作環境溫度為一25°C～40°C。

主要特點：
1.本系列產品整機結構主要由橋架部分、大車運行機構、小車部分及電器部分所組成：
2.橋架部分為四粱結構，由兩支端梁和兩支主梁通過聯接板采用高強度螺栓連接而成，在傳動側設有走臺，橋架采用了偏軌箱型梁。
3.升降機構采用單速升降或雙速升降鋼絲繩電動葫蘆，安裝型式一般為A2型，如果選用工作級別M6的電動葫蘆，其整機級別可選A6級；小車架、電動葫蘆與小車運行機構共同組成小車總成。
4.大車運行機構采用“三合一”分別驅動，小車運行機構采用“三合一”集中驅動或分別驅動，減速器為硬齒面漸開線花鍵套裝減速器，大、小車運行一般均采用變頻調速。
5.操縱方式設有司機室聯動臺操縱或地面手把按鈕操縱、地面遙控操縱三種方式可選用。

????? LH overhead crane with electric hoist based on the JB/T3695-2008 standard，is applicable to work in processing plants, assembly workshops and warehouses,etc. ?It is not allowed to be used in flammable or explosive or corrosive environments,for instance, foundries for lifting molten metal. Compared with LDA electric single-girder crane, it is reliable and safe for its smooth travelling. Compared with QD overhead crane for industrial applications, the product has obvious advantages such as light weight, small dimension, compact structure,fexible operation, low cost.

Performance data
Range of lifting load??? ?3t、5t、10t、16/3、20/5t、32/5t、40/10t、50/10t
Range of span??? 7.5～31.5m
Allowed crane classification group? A3～A5
Temperature of working environment??? -25℃～40℃

Main Features
1. The crane is mainly composed of bridge,travelling mechanism ,trolley and electrical system.
2. Its bridge ,called four-beam structure，mainly includes two main girde rs and two end carriages which are connected by means of high strength bolt. In addition，it has a platform along with driving side. The bridge adopts bias-rail box beam.

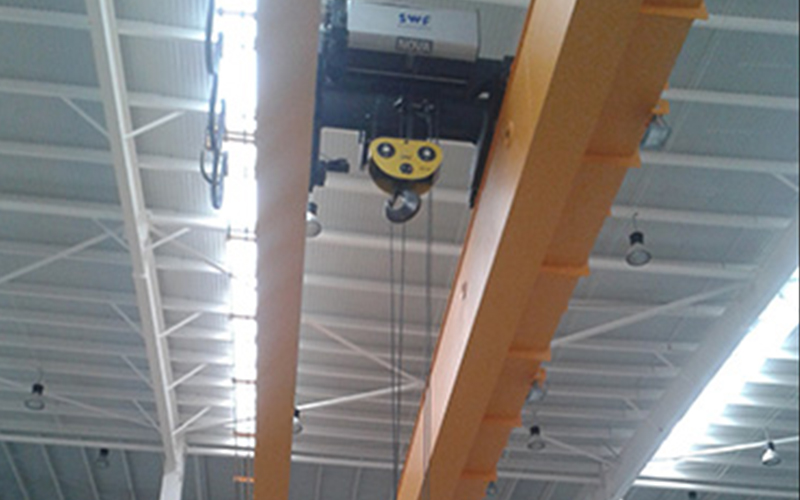

3.The hoisting mechanism adopts wire rope electric?hoist with single-speed or two-speed. Installation?grade is A2. If necessary, M6 electric hoist is mounted?and the classfication group of this crane can be up to?A6. The trolley mainly includes main frame, electric?hoist and travelling mechanism.
4. Travelling? mechanism? adopts? "three-in-one"?respective drive, Traversing mechanism adopts? "three in one" centralized or respective drive,The?reducer is tooth-hardened and by means of involute?spline it connects with wheel assembly. Both adopt variable frequency for speed adjustment.
5. This product has three types of manipulation：movable?cab’s, ground wired button control or remote control.

?
