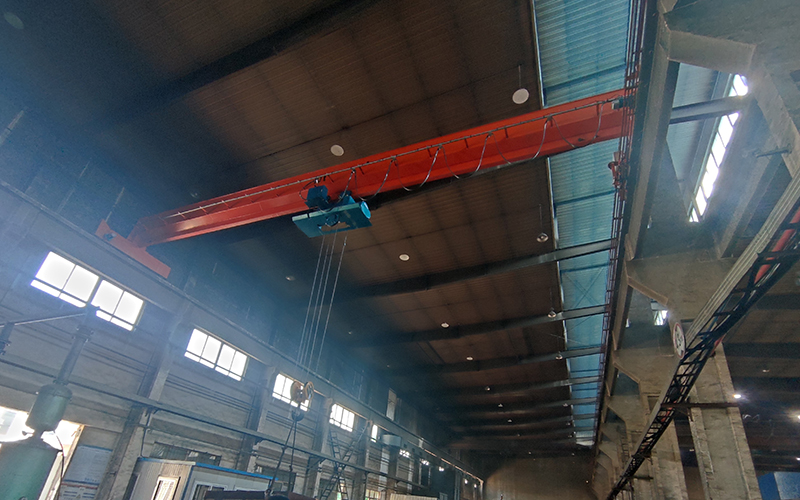

LDY型電動單梁起重機

LDY型電動單粱起重機依據JB／T1306-2008標準及國家質檢總局[2007]375號文的相關要求所設計制造，適用于小型鑄造車間吊運融熔金屬和搬運物料及臺模使用。
本系列產品起重量為1～10t，跨度為7.5～31.5m，工作級別為A6級。

主要特點：

1.本系列產品主、端梁結構采用LDA型電動單粱起重機箱型主梁及端梁結構形式。
2.起升機構匹配單速或雙速升降的冶金專用鋼絲繩電動葫蘆。其特點是升降具有雙制動、雙限位和超載保護功能，起升機構工作級別不小于M6級。
3.大車運行機構采用具有緩起、制動功能的電動機。操縱本產品要求遠離熱輻射源，一般采用遙控操縱，如果采用地面手把按鈕操縱，手把按鈕要設置單獨滑道。

     LDY electric single-girder crane, complying with JB/T1306-2008 standards and relevant requirements of the AQSIQ[2007]375．can be used to hoist and convey molten metal and assemble modules in small-scale foundries.

Performance data
Lifting load capacity    1～10t
Range of span    7.5～31.5m
Allowed crane classification group    A6

Main Features：
1.The main girder and end carriage’s frames refer to those of LDA crane.
2.Hoisting mechanism, mainly used for casting,matches with electric wire rope hoist with single-speed or two-speed. The hoist is characterized with dual brakes, double Iimiters of displacement and overload protection and its cassification group is not less than M6.
3.The travelling mechanism adopts motors with soft-start and braking function.
4.The manipulation of this crane is required to stay away from thermal-radiated sources. It is generally manipulated by remote control or cab"s，if ground button control is required, a separate slide should be added.
